Pinnacle MIGARC 145 Gasless MIG Welder Combo – 220V Plug & Play Welding Kit

The Pinnacle MIGARC 145 Gasless Combo Kit is a complete plug & play welding solution for DIY users, hobbyists, and light-duty workshop tasks. This compact multi process welder supports MIG (flux core), MMA (Stick), and Lift TIG welding—all powered by 220V single-phase input. With IGBT inverter technology and beginner-friendly controls, it delivers clean welds without the need for gas cylinders. The kit includes everything you need to start welding immediately: torch, cables, wire, safety gear, and even anti-spatter spray. Whether you're repairing, fabricating, or learning, this combo makes welding simple, safe, and portable.

Specifications:

•     Input Voltage: 220V ±15%, Single Phase
•     Welding Processes: Gasless MIG (Flux Core), MMA (Stick), Lift TIG
•     Output Range: MIG/MMA/TIG: 20A – 120A
•     Duty Cycle: 40% @ 120A
•     No-Load Voltage: 56V
•     Wire Diameter Compatibility: 0.8mm / 0.9mm / 1.0mm
•     Electrode Size: 1.6mm – 3.2mm
•     Spool Capacity: 1kg
•     Torch Type: MB15 (Removable)
•     Dimensions: 320 × 165 × 230mm
•     Weight: 5.3kg
•     Protection Class: IP21S
•     Safety Compliance: IEC60974-1 certified

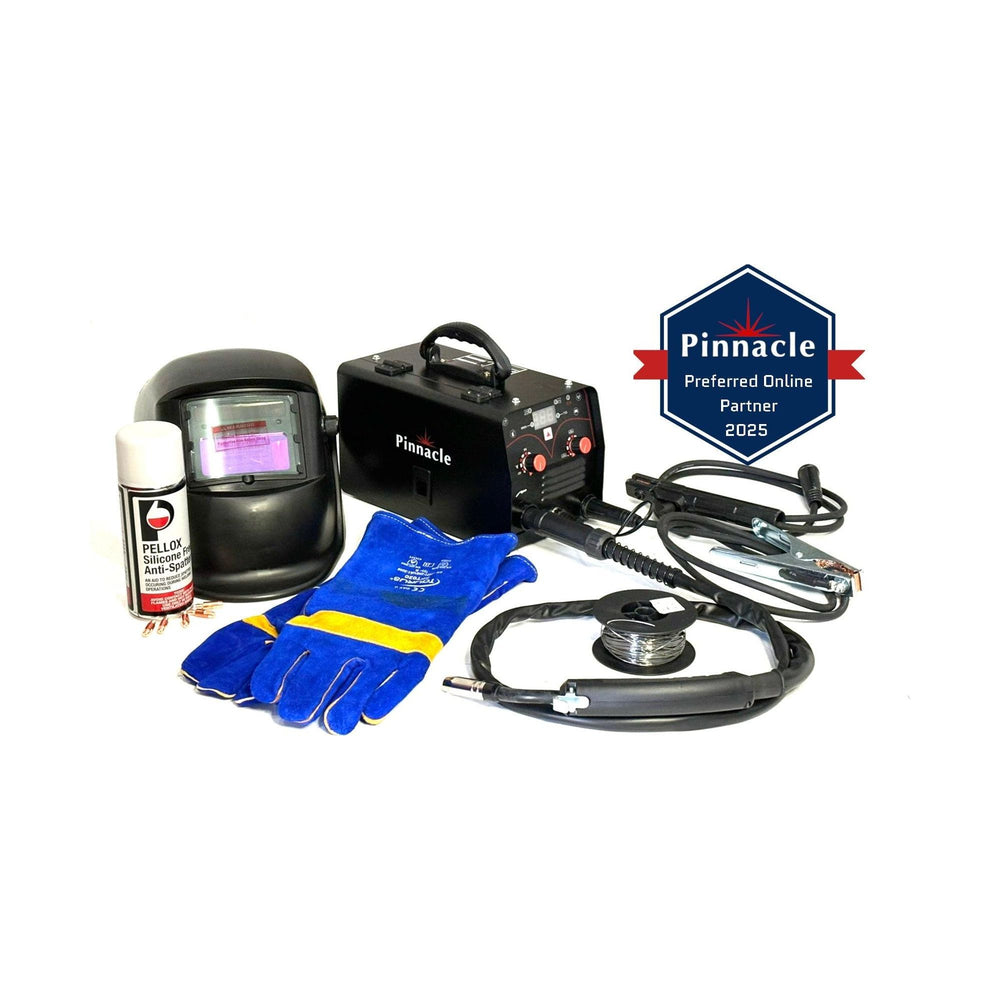

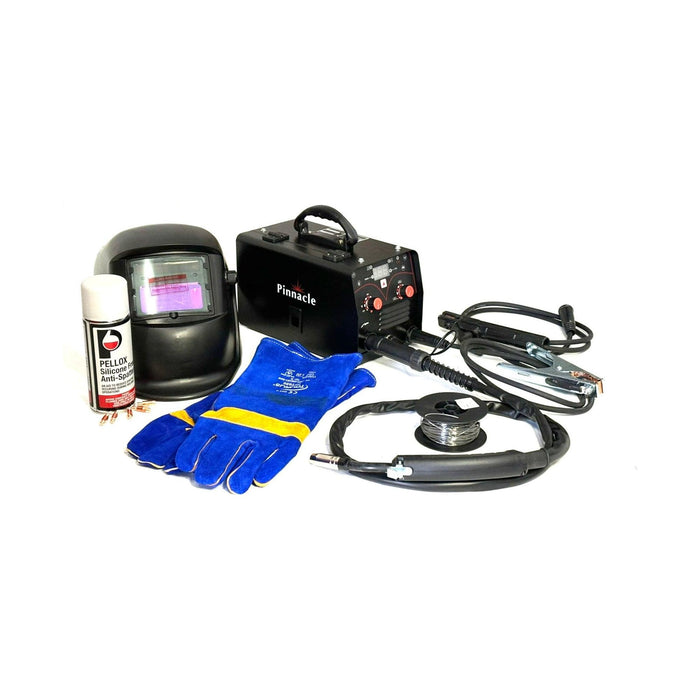

What’s in the Combo Kit

•     Pinnacle MIGARC 145 Gasless MIG/MMA/Lift TIG Welder
•     MB15 MIG Torch (Removable)
•     Earth Clamp with Cable & Electrode holder with Cable
•     1kg Flux Core Gasless Wire (0.9mm)
•     5 × M6 Contact Tips (0.9mm)
•     Anti-Spatter Spray
•     Red Heat Resistant Welding Gloves
•     Black Auto-Darkening Welding Helmet (Adjustable)
•     User Manual
