Pinnacle MIGARC 165 Gasless MIG Welder Combo – 220V Plug & Play Multi Process Welding Kit

The Pinnacle MIGARC 165 Gasless Combo is a powerful yet compact multi process welder designed for DIYers, hobbyists, and light-duty workshop use. Operating on 220V single-phase input, it supports MIG (flux core), MMA (Stick), and Lift TIG welding—no gas required. With IGBT inverter technology and a user-friendly interface, it delivers clean welds and stable arc performance. This plug & play kit includes everything you need to get started: torch, cables, wire, helmet, gloves, and accessories. Whether you're repairing, fabricating, or learning, the MIGARC 165 offers reliable results and portable convenience.

Specifications

•     Input Voltage: 220V ±15%, Single Phase
•     Welding Processes: Gasless MIG (Flux Core), MMA (Stick), Lift TIG
•     Output Range: MIG: 30–160A  MMA: 20–140A
•     Duty Cycle: 60% @ 160A
•     No-Load Voltage: 56V
•     Wire Diameter Compatibility: 0.8mm / 1.0mm
•     Electrode Size: 2.0mm / 2.5mm / 3.2mm
•     Spool Capacity: 1kg only
•     Torch Type: Removable MB15 MIG Torch (2m)
•     Dimensions: 450 × 350 × 230mm
•     Weight: 7.5kg
•     Protection Class: IP21S
•     Safety Compliance: IEC60974-1 certified

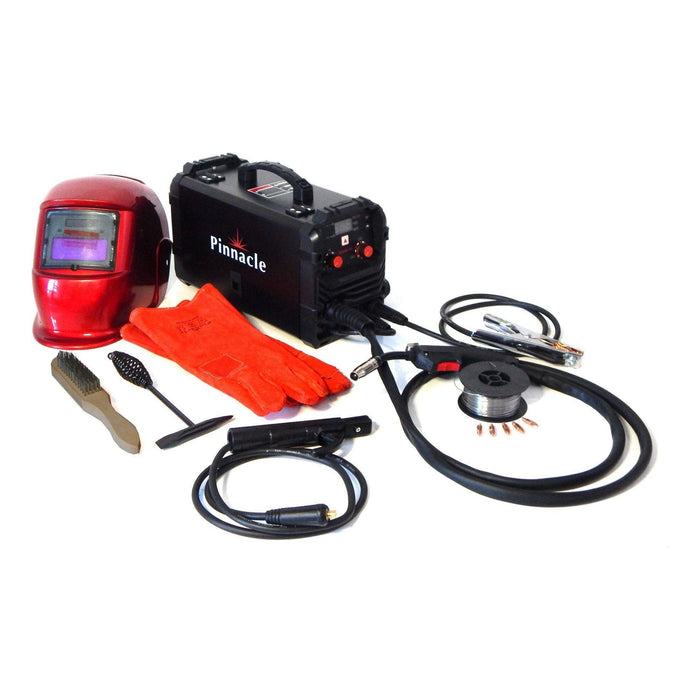

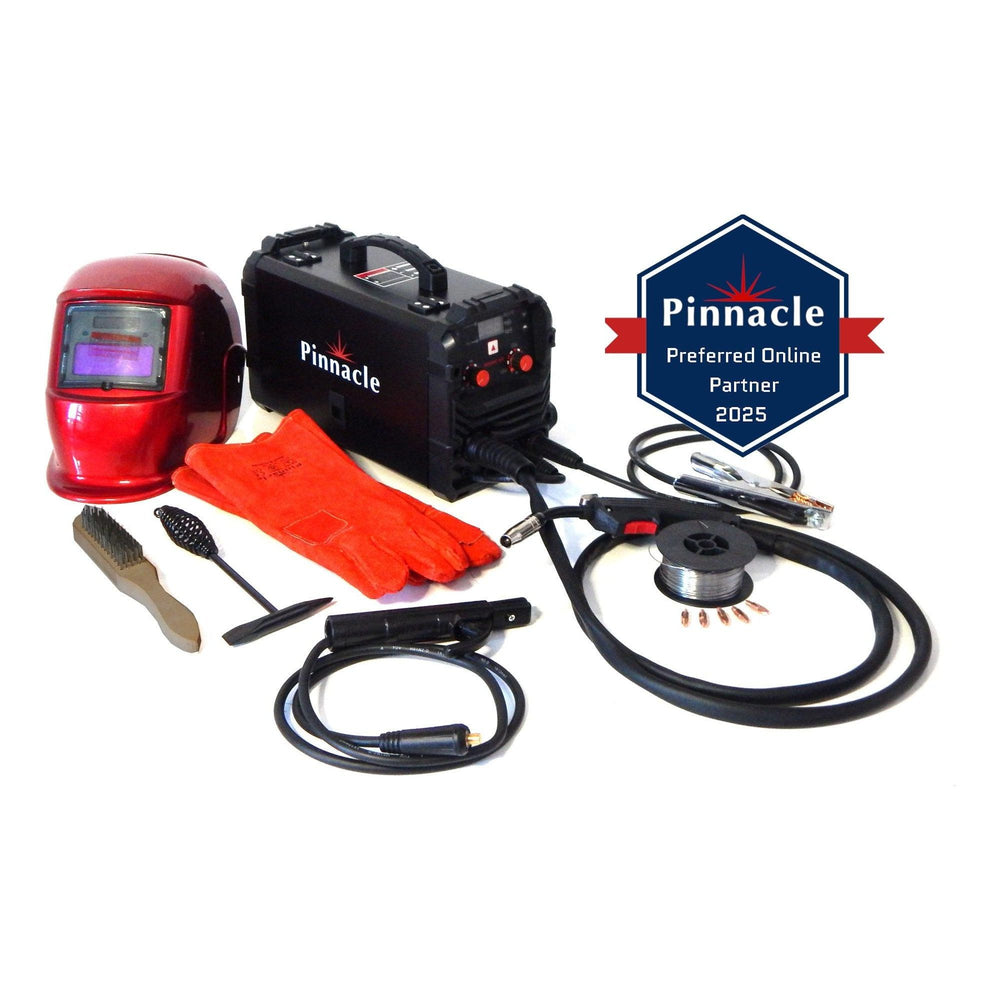

What’s in the Combo Kit

•     Pinnacle MIGARC 165 Gasless MIG/MMA/Lift TIG Welder
•     MB15 MIG Torch (Removable, 2m)
•     Earth Clamp with Cable
•     Electrode Holder with Cable
•     1kg Flux Core Gasless Wire (0.9mm)
•     5 × M6 Contact Tips (0.9mm)
•     Red Heat-Resistant Welding Gloves
•     Auto-Darkening Welding Helmet (Adjustable)
•     Chipping Hammer
•     Wire Brush
•     User Manual
