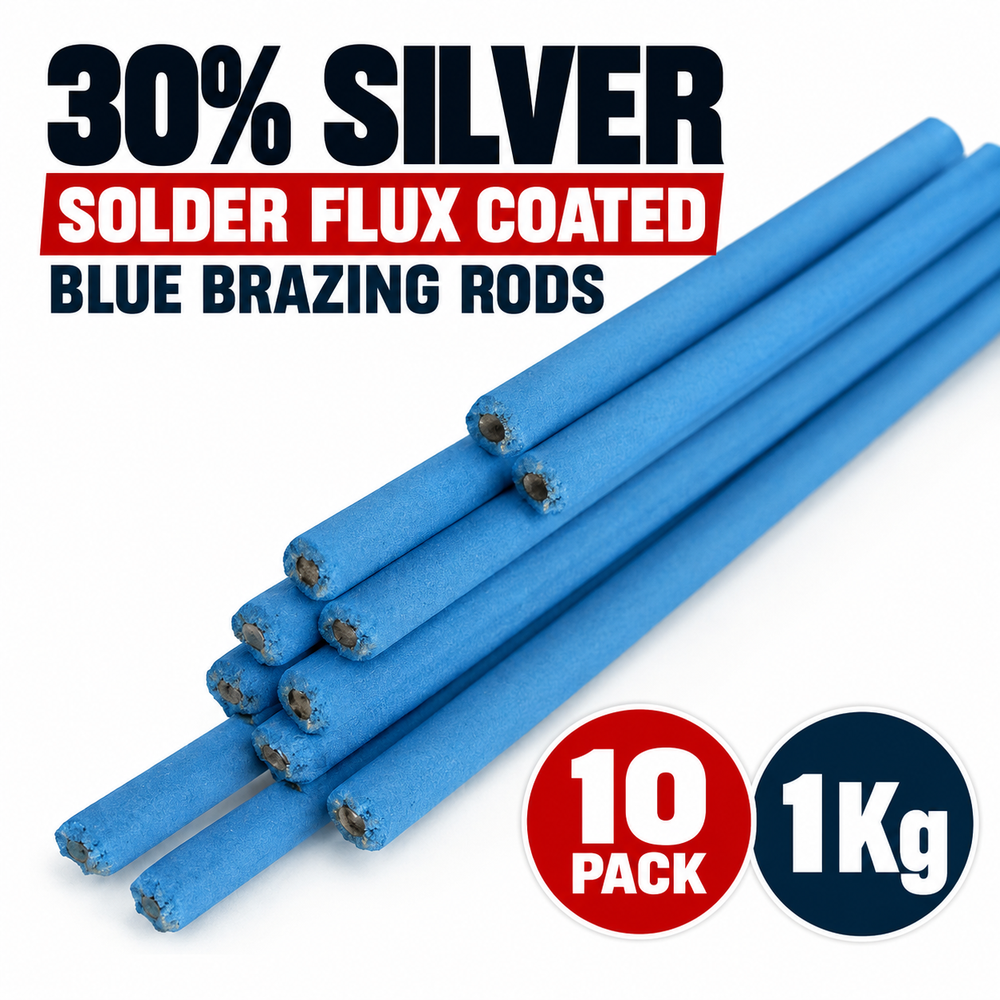

30% Silver Solder Flux-Coated Blue Brazing Rods AG306 – 1.5mm x 500mm
30% Silver Solder Flux-Coated Blue Brazing Rods AG306
TSA Welding Supplies offers 30% silver solder flux-coated blue brazing rods for compatible metal-joining, repair and maintenance applications. These silver brazing rods feature an integrated flux coating and a silver-bearing filler metal designed for brazing applications requiring controlled heating and reliable filler metal flow.
Containing 30% silver, the AG306 brazing alloy combines silver, copper, zinc and cadmium. With a specified solidus temperature of 610°C and liquidus temperature of 690°C, this alloy is suitable for applications requiring a silver brazing filler metal with a defined melting range.
The blue flux coating provides convenient application, helping to support the brazing process when used with compatible base metals and under the correct working conditions.
Available from TSA Welding Supplies in a pack of 10 rods, a 500g pack or a 1kg pack.
Key Features
-
30% Silver Content: Silver-bearing brazing alloy for suitable metal-joining applications.
-
Blue Flux Coating: Integrated flux coating for convenient brazing.
-
AG306 Alloy: Silver brazing alloy containing silver, copper, zinc and cadmium.
-
Defined Melting Range: Solidus temperature of 610°C and liquidus temperature of 690°C.
-
Versatile Applications: Suitable for compatible brazing, repair and maintenance work.
-
Three Pack Options: Available in a pack of 10 rods, a 500g pack or a 1kg pack.
Chemical Composition
| Element | Chemical Symbol | Composition |
|---|---|---|
| Silver | Ag | 30% |
| Copper | Cu | 28% |
| Zinc | Zn | 21% |
| Cadmium | Cd | 21% |
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Silver solder brazing rods |
| Alloy Designation | AG306 / AG30Cd |
| Silver Content | 30% |
| Rod Colour | Blue |
| Coating | Flux-coated |
| Rod Diameter | 1.5 mm |
| Rod Length | 500 mm |
| Solidus Temperature | 610°C |
| Liquidus Temperature | 690°C |
| Specific Gravity | 9.10 g/cm3 |
| Tensile Strength | 38Kg mm2 |
| Available Pack Sizes | Pack of 10 rods, 500g or 1kg |
Applications
These silver brazing rods may be suitable for compatible metal-joining and repair applications. Suitability depends on the base metals, joint design, operating environment and required mechanical properties.
Always confirm compatibility with the materials being joined and follow the manufacturer's recommended brazing procedures.
Important Safety Information
Contains 21% cadmium. Heating cadmium-bearing brazing alloys can release highly toxic fumes that pose serious health risks.
Appropriate local exhaust ventilation and fume extraction are essential. Follow the manufacturer's Safety Data Sheet (SDS) and applicable occupational health and safety requirements.
Available Purchasing Options
Choose the pack size that suits your requirements:
-
Pack of 10 rods
- 500g pack
-
1kg pack
Order your 30% silver flux-coated blue brazing rods from TSA Welding Supplies.
