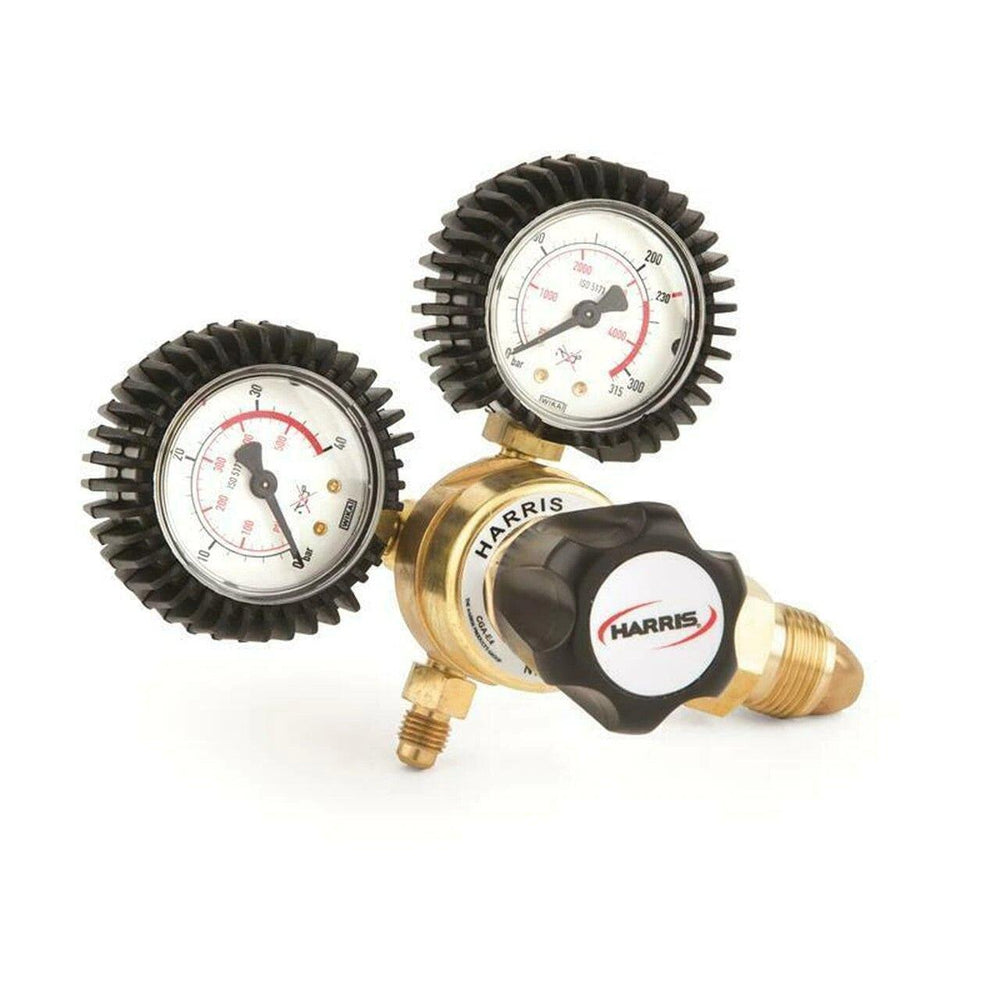

Harris Nitrogen Regulator 601Z186 B/Rubber COV 55 Bar

R 2,030.95
SKU 19-3004162
Features:
  • Suitable for Nitrogen Cylinders
  • Allows to perform leak test (HVAC&R pressure testing): maximum delivery pressure 55 bar
  • Forged brass body and bonnet
  • Maximum inlet pressure of 230 bar
  • Side inlet connection (rear entry optional)
  • Temperature Range: -20  +60 °C
  • Leak rate: max 10 cmq/h, according to ISO 9090
  • weight: 0.85 kg
  • Valve seat in PTFE (Teflon)

Specifications:

  • Max Inlet Pressure: 230 Bar
  • Delivery Pressure Range: 55 Bar




Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Johann du Plessis
Almost there but not Quite!

Ordered the regulator. Delivered in 2 days. Kudos to TSA Welding supplies for an awesome response. Unfortunately, the regulator will not be able to handle the pressure required to do high-pressure tests in HVAC/ Refrigeration. It can only handle 1000kpa. I need it to go up to 2000kpa in some cases.

W
Werner De Jager
Product and Service Review

Very good quality product (5 stars), but absolutely overshadowed by the EXCELLENT service from TSA Welding Supplies (6 stars).
