Pinnacle MIGARC 200 Gasless Welding Machine Combo – 220V Digital Multi Process MIG/MMA/Lift TIG Kit
The Pinnacle MIGARC 200 Gasless Combo is a high-performance digital inverter welding machine built for DIY users, weekend warriors, and light industrial tasks. With full support for MIG (flux core), MMA (Stick), and Lift TIG welding, this 220V single-phase unit delivers up to 200A output with a 60% duty cycle. Its synergic control panel simplifies setup—automatically adjusting wire speed and voltage for smoother welds. Whether you're working outdoors, in a garage, or on-site, this machine offers gasless convenience, precision control, and plug & play simplicity.
Key Features
• Multi Process Capability: MIG (gasless), MMA (Stick), Lift TIG
• Digital Synergic Control: Auto-adjusts wire speed and voltage for optimal welds
• Gasless MIG Ready: Weld with flux core wire—no shielding gas required
• Microprocessor Operation Panel: Intuitive digital display for easy setup
• Compact & Portable: Lightweight design with carry handle for mobile use
• Built-In Wire Feeder: Supports 5kg flux core wire spools
• Removable MB15 Torch: 2m Euro connector torch for quick maintenance
• Heavy-Duty ARC Kit: Electrode holder and earth clamp included
• Fan-Cooled System: Maintains performance under extended use
• Safety & Compliance: IP21S protection class, IEC60974-1 certified
• Warranty: 12 Months
Specifications
• Input Voltage: AC 220V ±10%, Single Phase
• Rated Power Capacity: 7.1 kVA
• No-Load Voltage: 53V
• Output Current Range: 10–200A
• Duty Cycle: 60% @ 200A
• Wire Diameter Compatibility: 0.6mm / 0.8mm / 0.9mm
• Electrode Size: 2.0mm – 3.2mm
• Spool Capacity: 5kg only
• Weight: Approx. 12.5kg
• Dimensions: 480 × 180 × 350mm

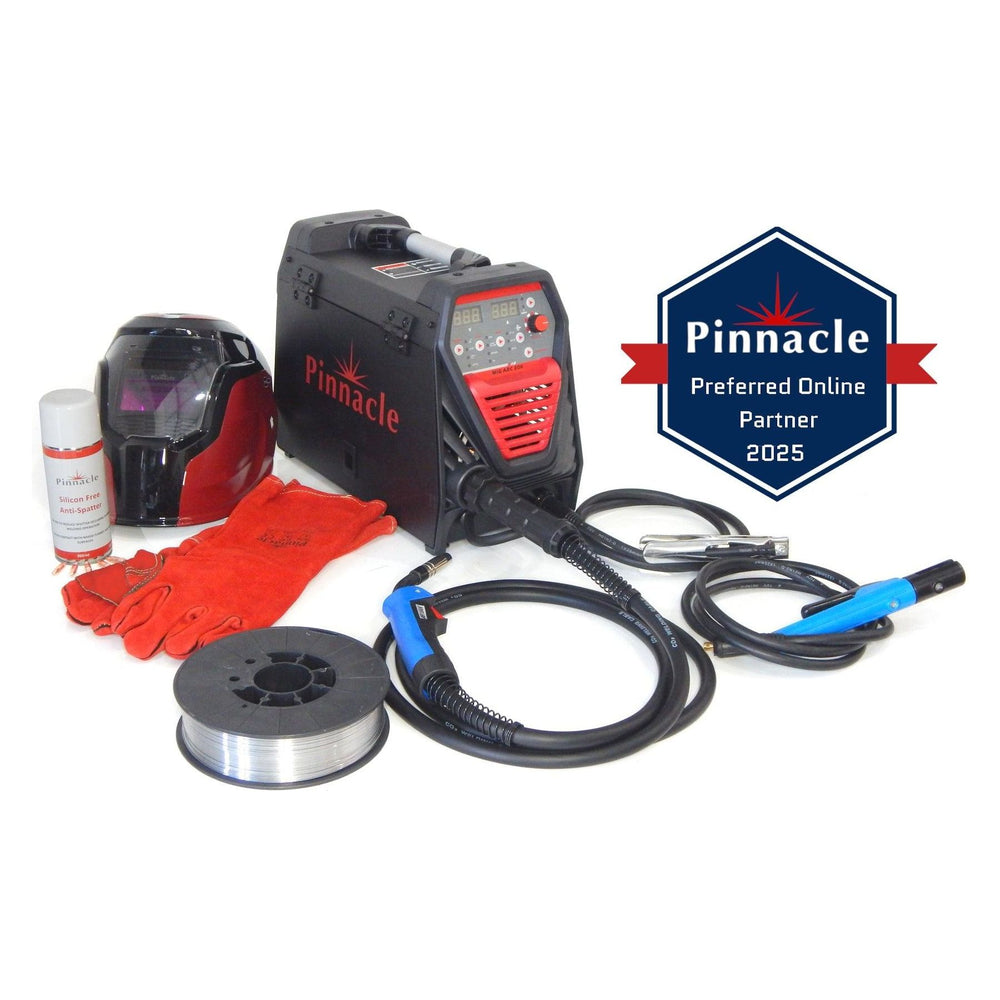

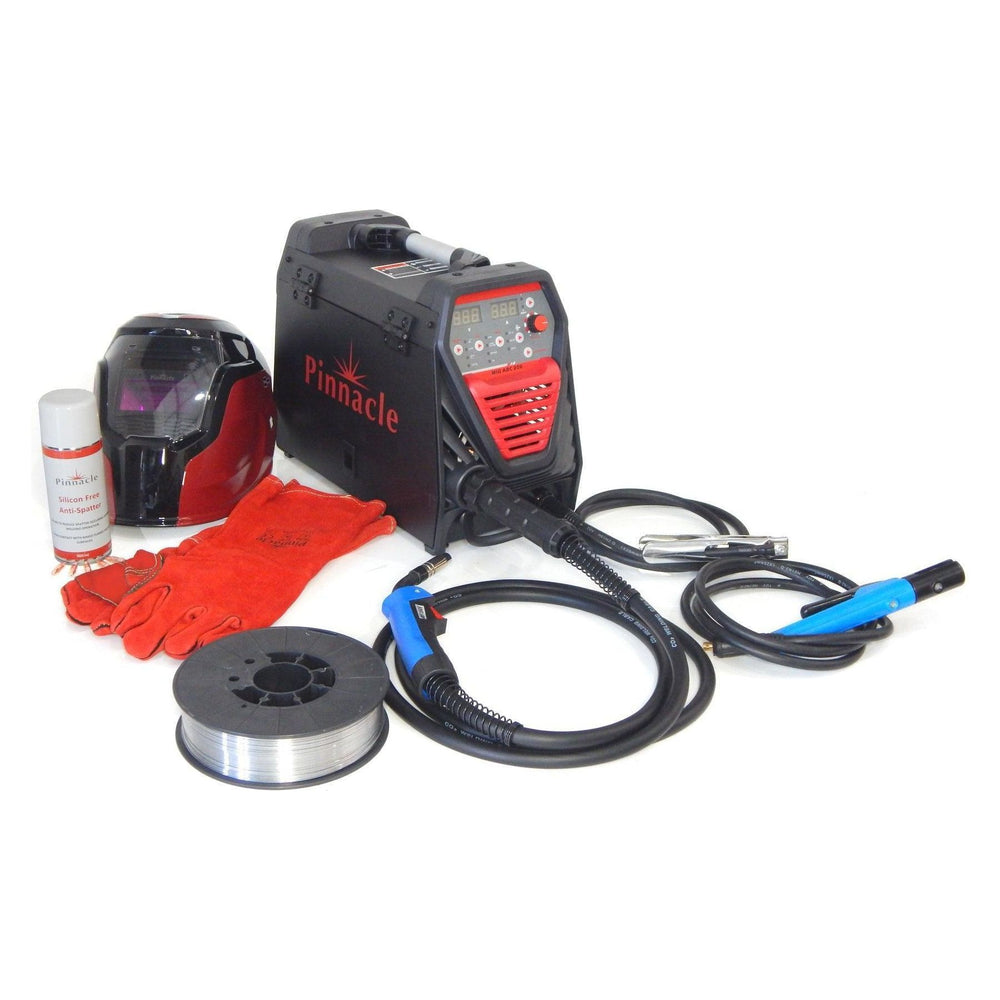

What’s in the Combo Kit
• Pinnacle MIGARC 200 Digital Gasless Welding Machine – 220V
• MB15 MIG Torch (Removable, 2m)
• Earth Clamp with Cable
• Electrode Holder with Cable
• 5kg Flux Core MIG Wire (0.9mm E71T-11)
• 5 × M6 Contact Tips (0.9mm)
• Auto-Darkening Welding Helmet (Otosola with grind mode)
• Red Heat-Resistant Welding Gloves
• Anti-Spatter Spray
• User Manual
