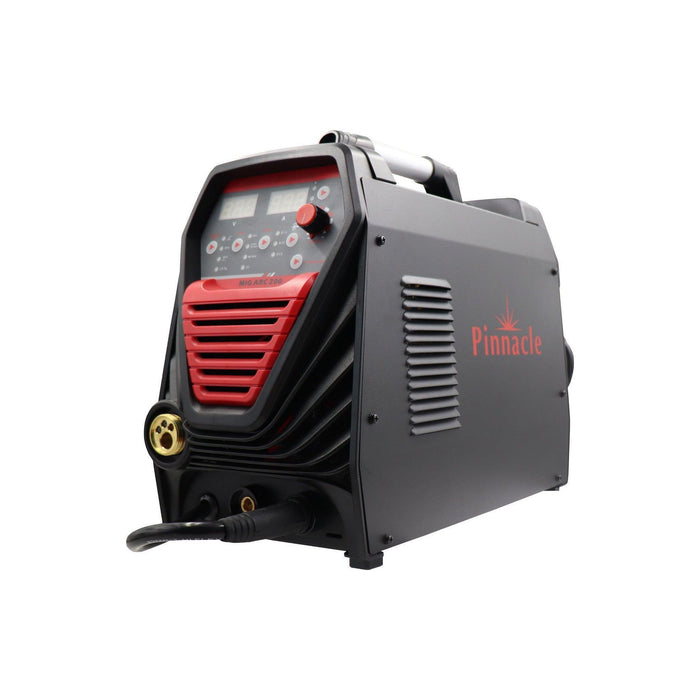

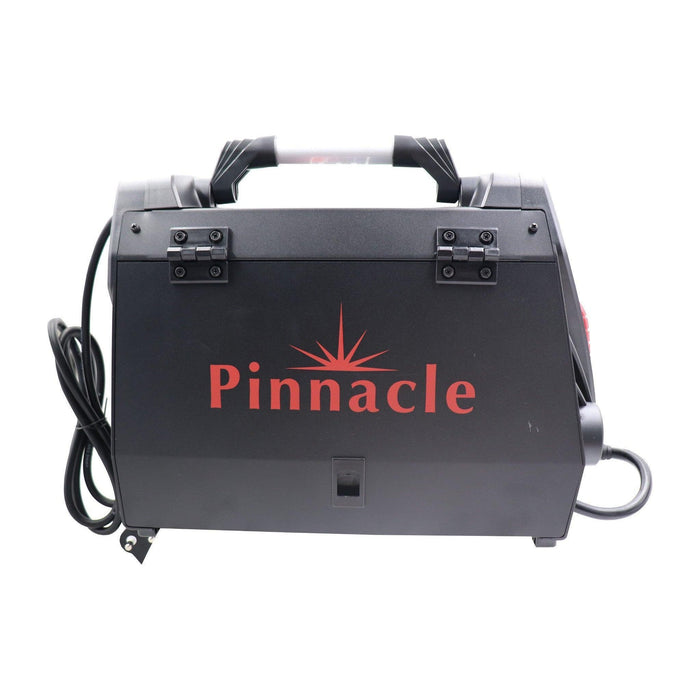

PINNACLE MIGARC 200 DIGITAL WELDING MACHINE

Sale
R 7,250.00
R 5,499.00
SKU 7-PINMIG200

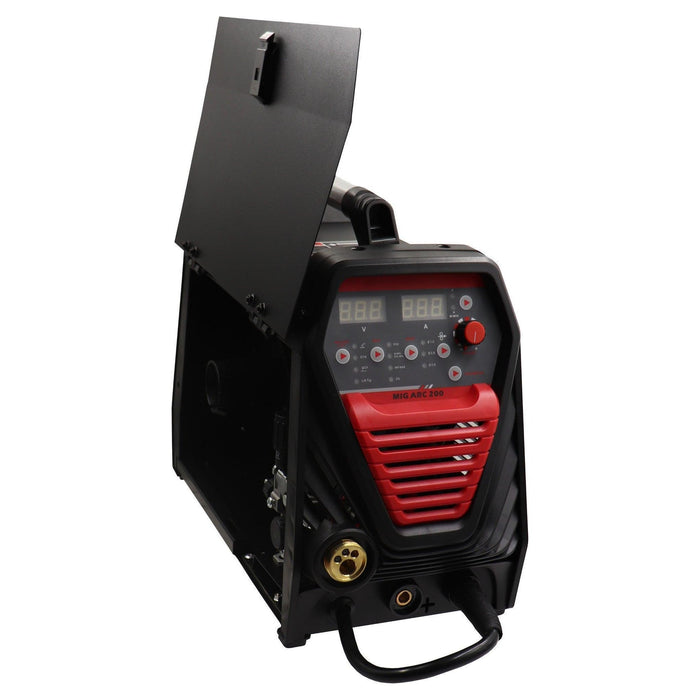

The New Digital MIGARC 200 features a full digital functionality, it also provides a new feature called synergic welding. These popular MIG Welding Machines are one of the first of it’s kind to provide a compact MIG / Lift TIG / ARC Welding Inverter. Ideal for the DIY Hobbyist and can handle light industrial welding, this machine is small enough to handle in any welding environment. With a built-in wire feeder suitable for 5kg wire spools, ARC Welding Cable Kit for MMA Welding and a 2 metre MB15 MIG Torch.

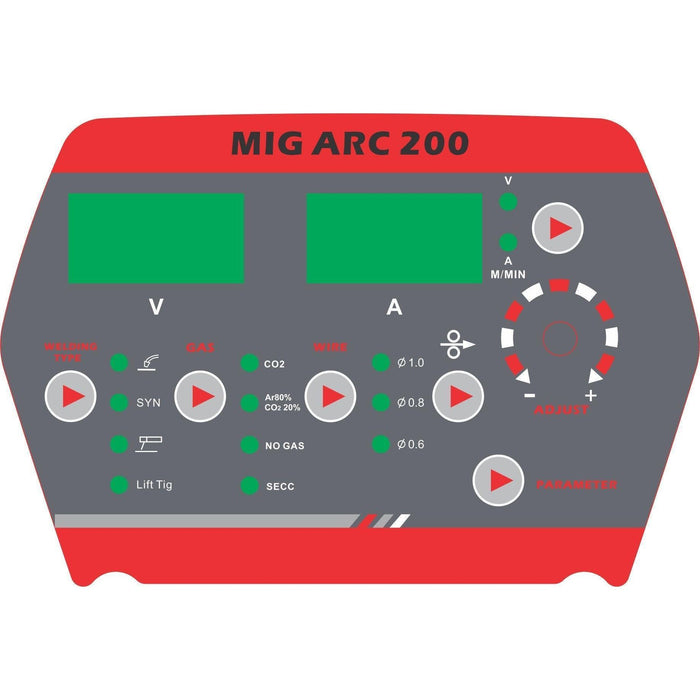

The New Digital MIGARC 200 MIG Welding Machine Front Panel allows ease of selection between functions and with the new synergic welding functionality, most settings are preset, presenting you with a plug and play experience. Simply select the welding function, gas use selection, wire thickness, and then weld and adjust your wire speed accordingly.

The New Digital MIGARC 200 MIG Welding Machine also allows one to select up to 9 different preset welding mode settings, making welding easier even for the novice.

Let us not forget the new high-tech design, this would look good in any garage or workshop.

Features:

- Welds MIG, Gas and No Gas, ARC & Lift TIG

- Single Phase, Portable, Fan-Cooled Digital Inverter Welding Machine

- Microprocessor Operation Panel which brings more simple & precise control and precision

- More Compact Design, Lightweight, with High Duty Cycle

- Synergic Control which ensures a more simple & smarter welding operation

- 9 Programmable Welding Modes in Memory for Easy Welding Setting

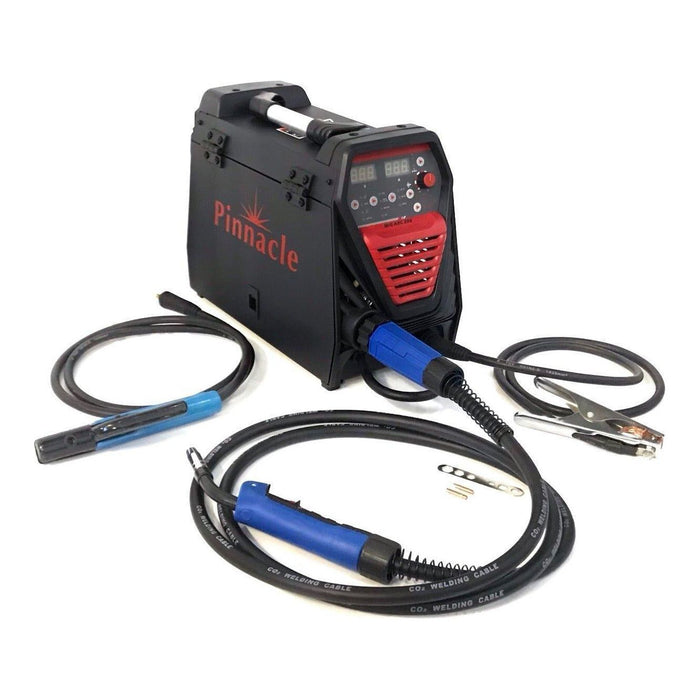

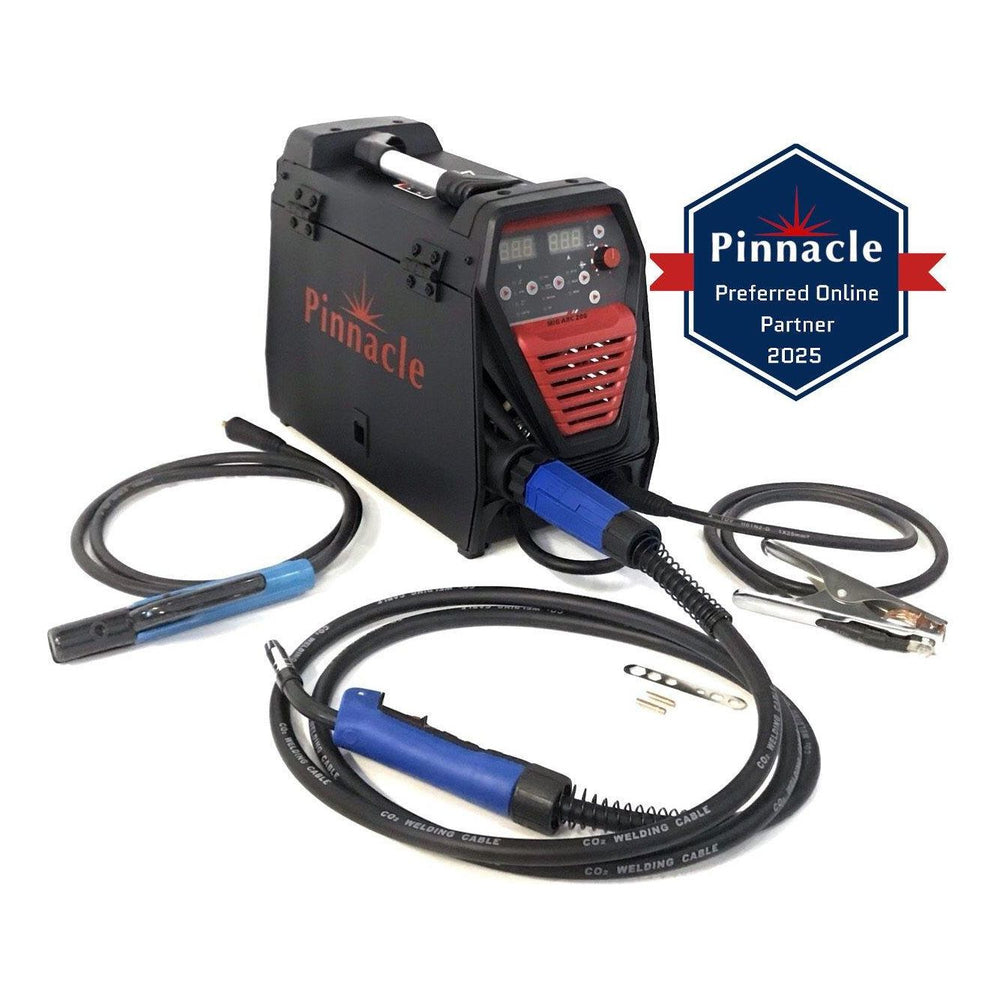

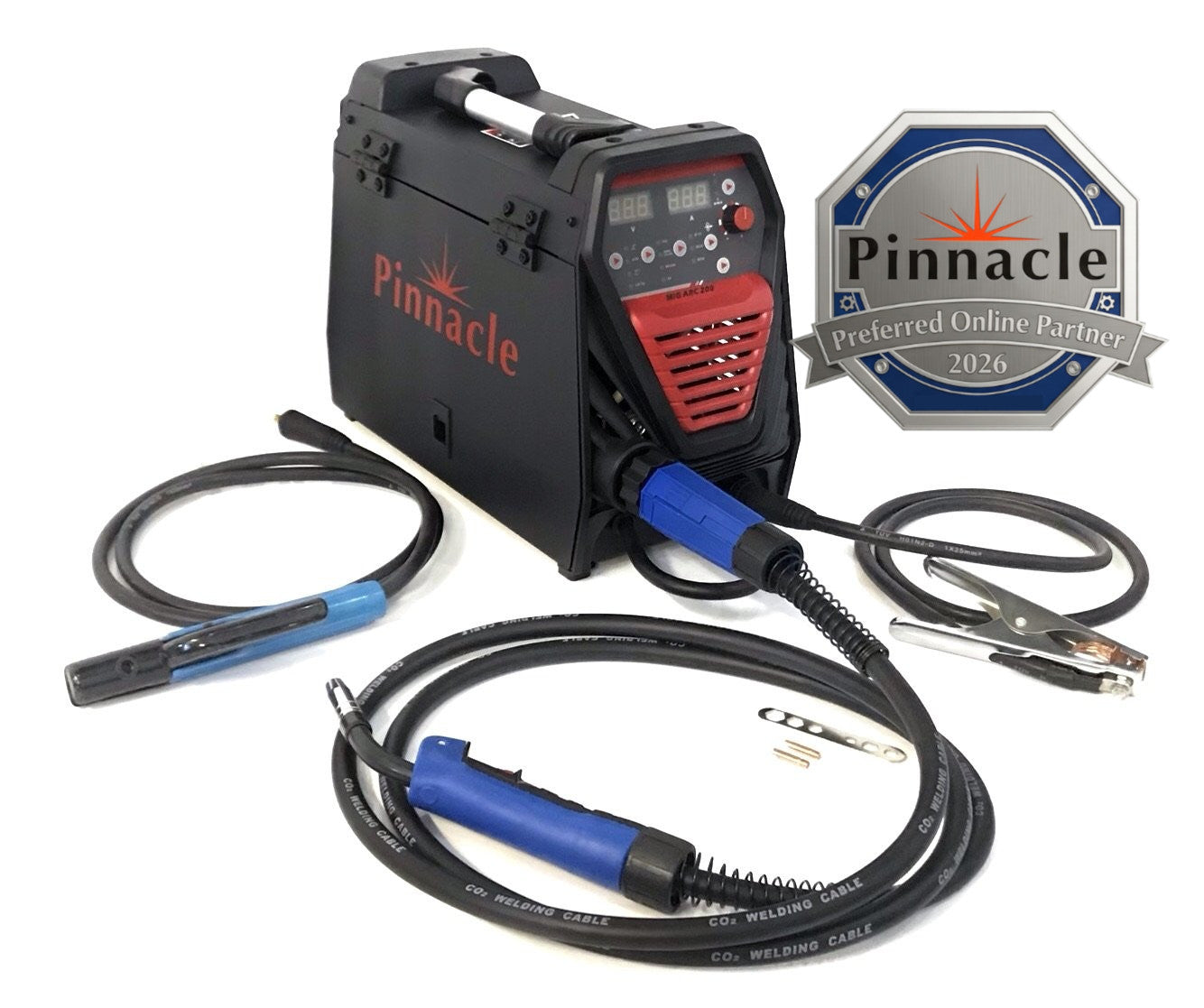

Includes:

- Inverter Power Source (MIGARC 200)

- 2M MB15 MIG Welding Torch

- 2M Earth Clamp & Cable

- Electrode Holder & Cable

Specifications:

- Input Power Voltage: AC 220V +/-15%, 1Ph

- Input Voltage Frequency: 50/60 Hz

- Rated Input Power Capacity (KVa): MIG: 6A ; MMA: 5.4 ; Lift Tig: 3.3A

- Rated Input Current: MIG: 27A ; MMA: 24.5A ; Lift TIG: 15A

- No-Load Voltage: 52V

- Output Current Range: MIG: 20-200A ; MMA: 20-200A ; Lift TIG: 20-160A

- Duty Cycle: 60% @ 40 Deg. Celcius

- Welding Wire Size: MIG: 0.6 - 1.0mm

- Welding Electrode Size: MMA: 2.0 - 3.2mm ; Lift TIG: 1.6 - 2.0mm

- Weight: 13Kg

- Dimensions: 525 x 380 x 380 mm

Customer Reviews

Based on 6 reviews
83%
(5)
17%
(1)
0%
(0)
0%
(0)
0%
(0)
E
E.V.
Outstanding service

Can recommend TSA welding supplies, quick and efficient service.100%satisfied with the welding equipment

A
A.S.
Product and Service

Service from TSA was amazing , machine is also an awesome little machine , very straightforward to operate

R
R.B.
Welding machine

Mig welding machine working great

W
W.S.
Excellent job

Very impressive service

M
M.D.
Pinnacle Migarc 200

Great welder for the hobbyist/novice or even light industrial fabrication. Setting up was a breeze.
Only gripes I have are the instructions and length of mig gun cable.
The instructions need to be simplified for the novice as would think most buyers would be of that type and basic MIG starting parameters would be good. I used the parameters indicated and had "burn through" continuously. Had to google and found a UK site whose parameters were fantastic and since, have had no problems...got the knack pretty quickly.
2m cable, come on Pinnacle!!!???, to fit with a 3 or 4m MIG cable should be standard.
Is this product worth the money, absolutely!!!
Lastly, the service of TSA Welding was superb.
