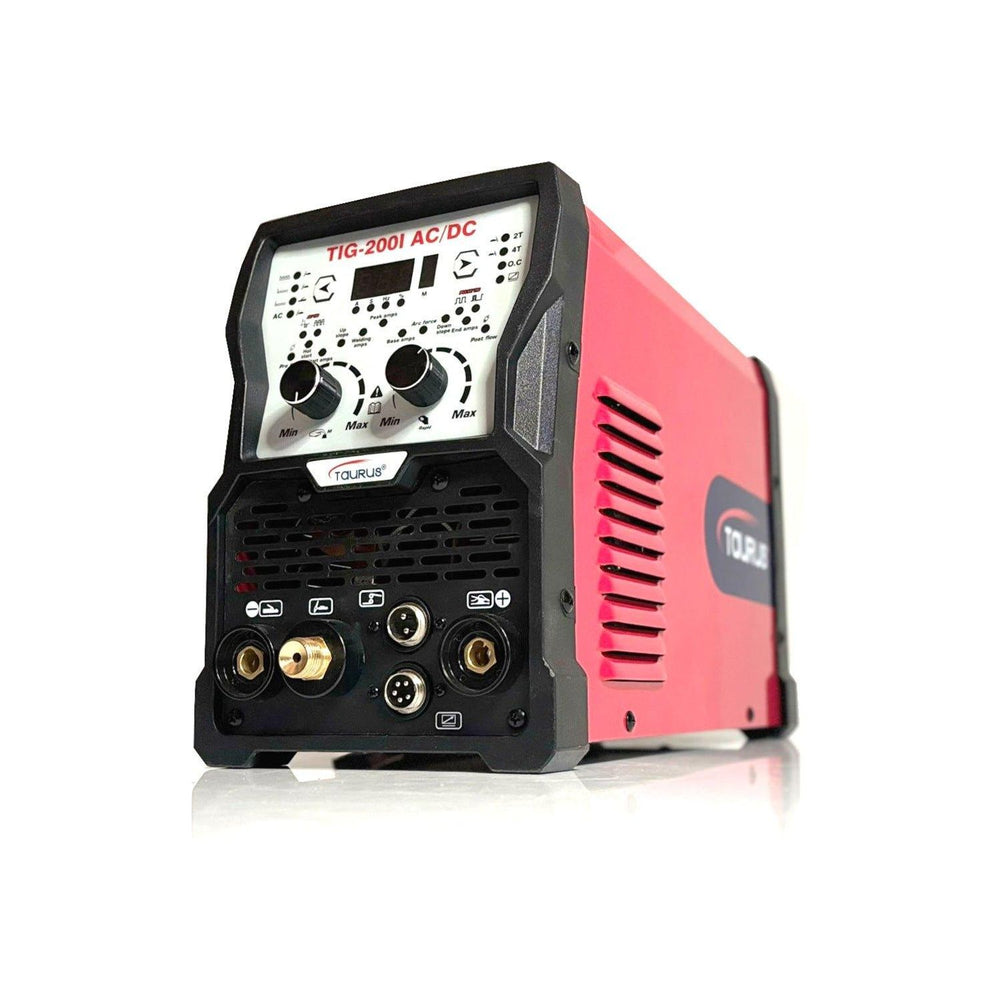

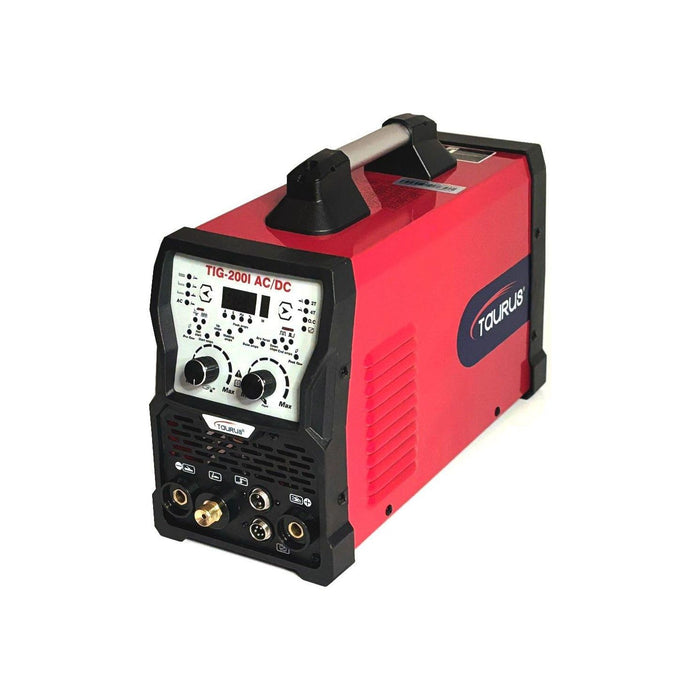

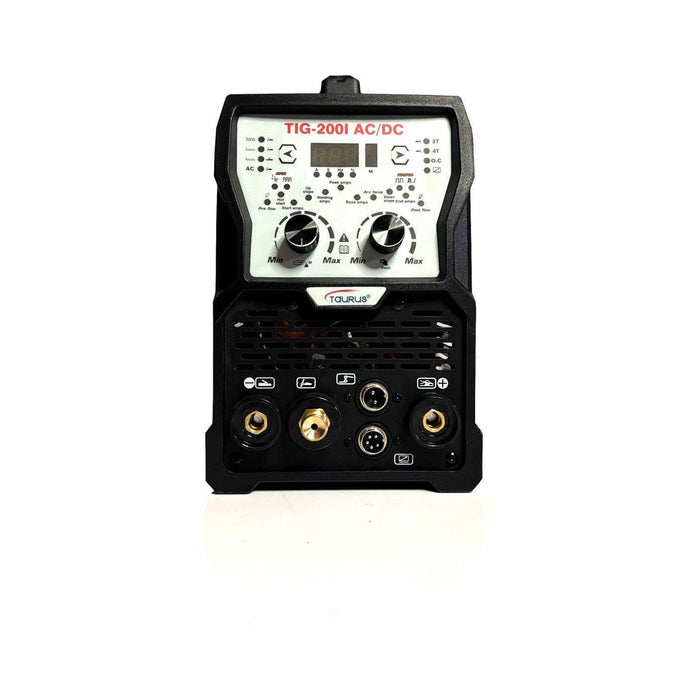

Taurus TIG-200i-AC/DC Pulse TIG Welder

The Taurus TIG 200i AC/DC PULSE inverter is a robust, generator-friendly machine designed and manufactured for operation under demanding industrial conditions. The advanced power input system will detect and handle a voltage drop or a spike of up to 20%. This will not only safeguard the machine against damage resulting from erratic power supply, but will alsoensure smooth, uninterrupted operation. The two main built-in functions, pulse welds and high frequency ignition, ensure professional ease of welding and high-quality welds. The pulse function facilitates control over the welding process and prevents burn-through on the workpiece. The high frequency ignition creates a very soft start arc as well as maximum arc control. This obviates the need to touch the workpiece with the tungsten electrode. Both functions have a great advantage when welding thin material. The Taurus TIG 200i AC/DC PULSE inverter's selection panel allows welding with either AC or DC current - in AC mode for aluminium welding or in DC mode for all steel and steel alloy materials. It has good static characteristics, their dynamic performance is equally good and they are manufactured in accordance with IEC60974-1.

Features:

• Multi-function digital control featuring DC TIG, pulsed DC TIG, pulsed AC
  TIG and MMA welding in one unit.
• A 20% Voltage fluctuation safeguard.
• Excellent arc force performance and a wide cleaning range all contributing
  to high quality welding results.
• The high-frequency, high-voltage arc ignition circuit produces excellent
  arc-starting at 99.9% success rate which all contribute to its suitability for
  various types of spot welding.
• Pulsed welding with adjustable pulse frequency ensures the successful
  welding of thin and varying thickness metal sheets and dissimilar metals.
  It also meets the requirements for forming double-sided welds.
• In case of wire-spitting during the welding process, a foot control allows
  current increase resulting in rapid temperature increase. Decreasing the
  current output allows continuation of a weld seem. Using a foot control
  adds to welding efficiency, reduces difficulties during the welding process
  and improves welding quality.

Specifications:

• Rated Power Input Supply: 220V Single Phase
• Duty Cycle: 60% @ 200A
• Open Circuit Voltage: 60V
• Welding Current Range: 10 - 200A TIG ; 10-170A MMA
• Dimensions: 400 x 300 x 330mm ; 13.5Kg

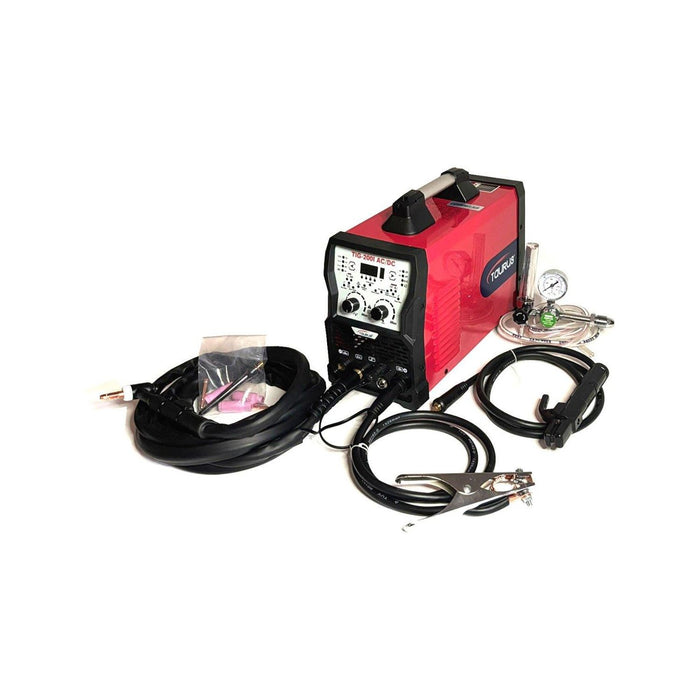

Included:

• Earth Clamp & Cable
• Electrode Holder & Cable
• TIG Torch
• Flowmeter
