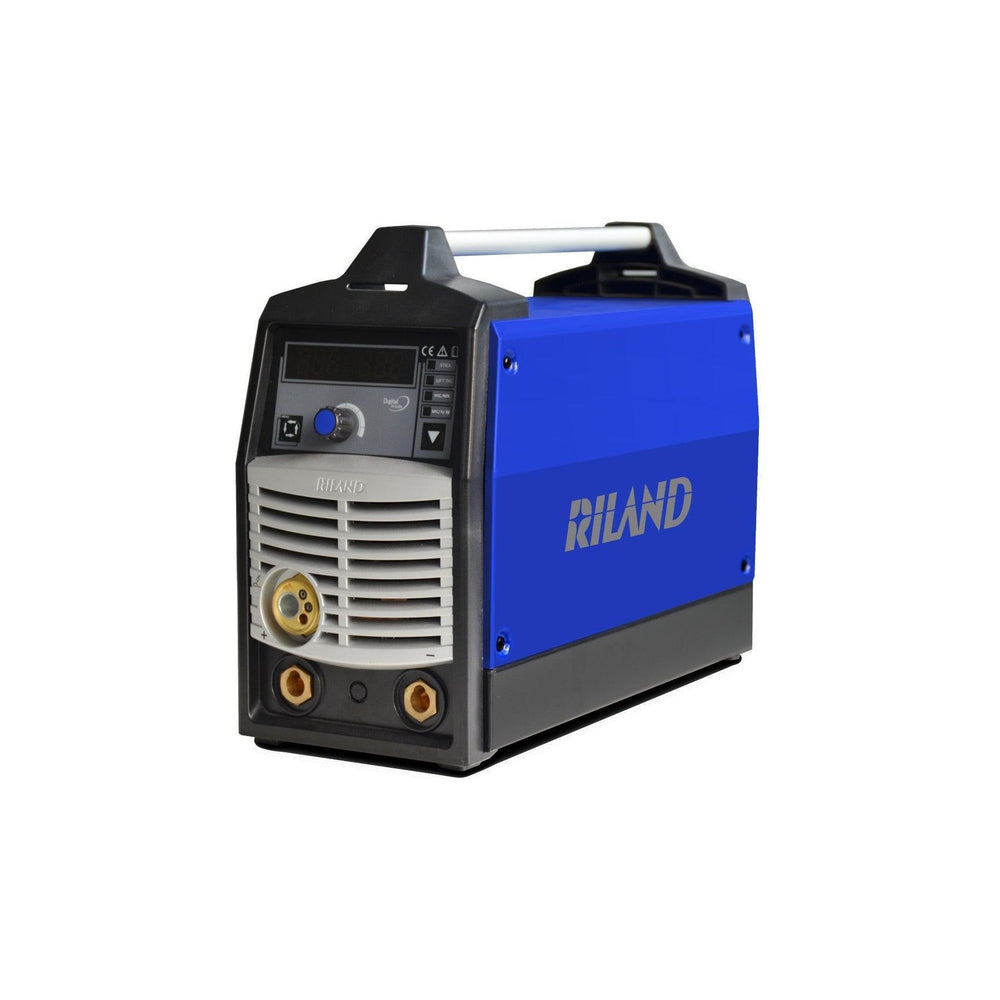

Riland MIG 180P GDM Multi-Process MIG-TIG-ARC Welding Machine

R 12,229.00
SKU 7-RILMIG180

WORLD'S SMALLEST DOUBLE PULSE MIG WELDER

The Riland MIG 180PGDM is a light industrial, fully digital pulse MIG Welding Machine. The MIG Welding Machine can complete the following processes, MIG/MIX, MIG/Ar Al, MIG/Gasless, MMA and Lift TIG Function. The Riland MIG 180PGDM is the world's smallest MIG Welding Machine with pulse functionality and offers synergic welding, with a built-in CPU that provides self-adaptive ARC Force and Hot Start features.

This single-phase MIG Welding Inverter unit is 180 Amp, with 100% Duty Cycle up to 90 Amps on MIG Welding, 85 Amps on MMA/ARC and 100 Amps on TIG Welding it is also compatible with 1kg and 5kg wire rolls and offers 2T and 4T function, with a polarity switch for switching between Gas and Gasless Welding. The most compact and versatile MIG Welding Machine on the market.

ย Processes:

- MIG/MIX

- MIG/Ar Al

- MIG/Gasless

- MMA

- Lift-TIG

Package Includes:

- Inverter Power Source

- 1.5M MIG Welding Torch

- 3M Earth Cable

- 3M Gas Hose

- 2 x Hose Clamps

- Manual

Features:

- The smallest MIG Welding Machine with pulse in the world

- Built-in CPU

- Synergic Welding, voltage and induction micro-adjustable

- 2T/4T Function

- Polarity switch inside MIG Wire chamber

- Self-Adaptive ARC Force & Hot Start

- Anti-Sticking

- VRD Adjustable

- Fan Cooled, reduced noise and dust

- Compatible with 1kg & 5kg Spools

- 220V

Specifications:

Input Voltage/Phase/Frequency 220V/1P/50-60 Hz
Amps Input at Rated Output MIG: 34A@180A
MMA: 34A@160A
TIG: 27.5A@180A
Output Current/Voltage/Duty Cycle (40ยฐC) MIG: 90A/18.5V/100% - 180A/23V/25%
MMA: 85A/23.4V/100% - 160A/26.4V/25%
TIG: 100A/14V/100% - 180A/17.2V/25%
Output Range/OCV MIG: 50-180A/56V
MMA: 15-160A/56V/17V (VRD)
TIG: 15-180A/17V
Weight 8 kg
Dimension (mm) 386 X 170 X 300
